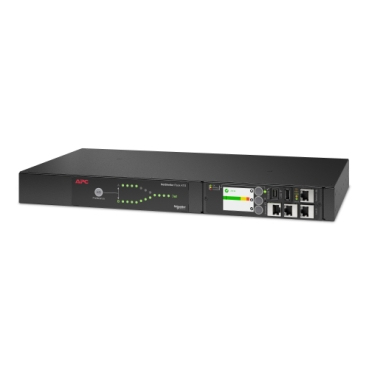

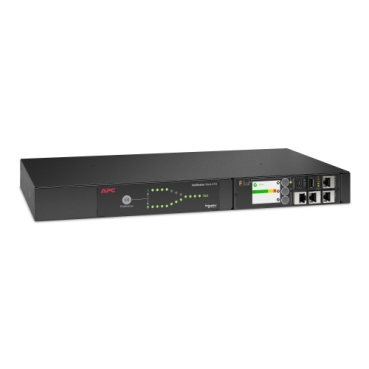

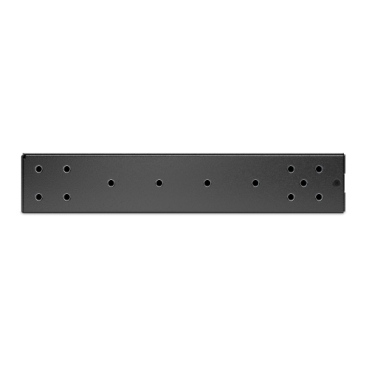

APC AP4434A Automatic Transfer Switch (ATS)

Name: APC AP4434A Automatic Transfer Switch (ATS)
SKU: 6792568
Price: 2207.26 USD
Availability: InStock

APC AP4434A. Input operation voltage (min): 187 V, Input operation voltage (max): 228 V, AC input frequency: 50/60 Hz. Form factor: Rackmount, Rack capacity: 1U, Product color: Black. AC outlet types: IEC 60320. Width: 17" (432 mm), Depth: 9.29" (236 mm), Height: 1.73" (44 mm). Package width: 23.6" (600 mm), Package depth: 14" (356 mm), Package height: 4.49" (114 mm)

Manufacturer: APC

SKU: 6792568

Manufacturer part number: AP4434A

Vendor: Synnex

MSRP: $2,485.00

Price: $2,207.26

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Width	17"
Depth	9.29"
Height	1.73"
Weight	8.25 lbs
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS, WEEE, cUL
Technical details
Product color	Black
Sustainability certificates	UL ECOLOGO
Sustainability compliance	Yes
Packaging data
Package width	23.6"
Package depth	14"
Package height	4.49"
Package weight	12.1 lbs
Ports & interfaces
AC outlet types	IEC 60320
Design
Form factor	Rackmount
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95 %
Storage relative humidity (H-H)	5 - 95 %
Power
AC input frequency	50/60 Hz
Features
Rack capacity	1U
Input current	20 A
Input operation voltage (min)	187 V
Input operation voltage (max)	228 V
Output operation voltage (min)	208 V
Output operation voltage (max)	208 V
Output current	20 A
