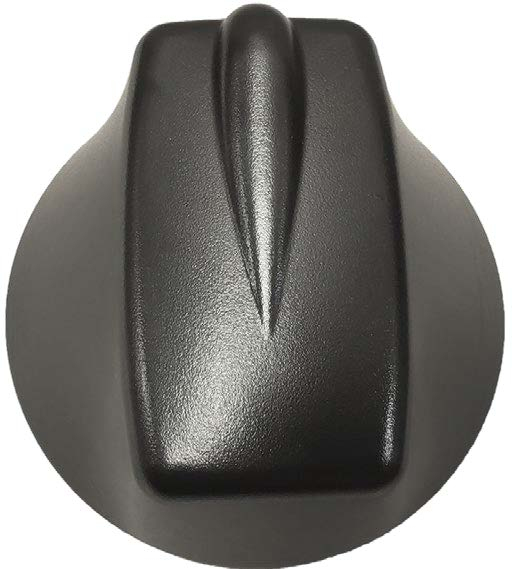

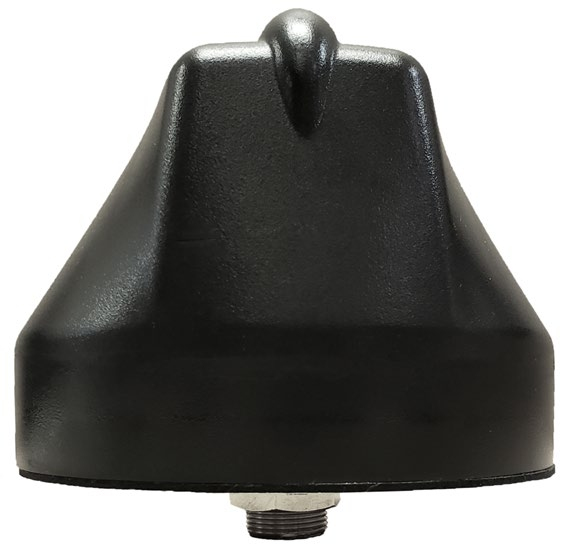

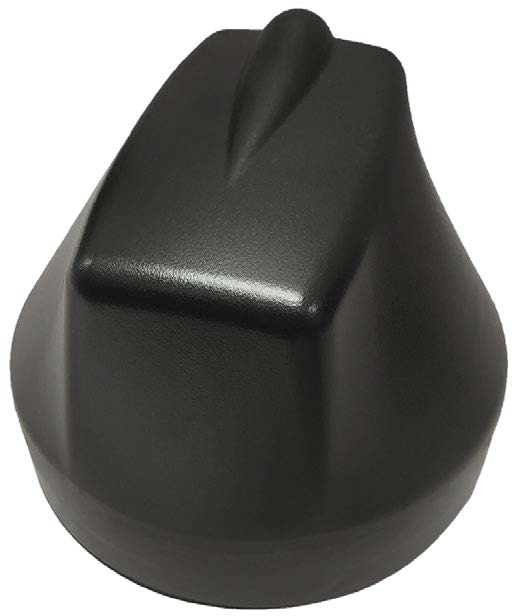

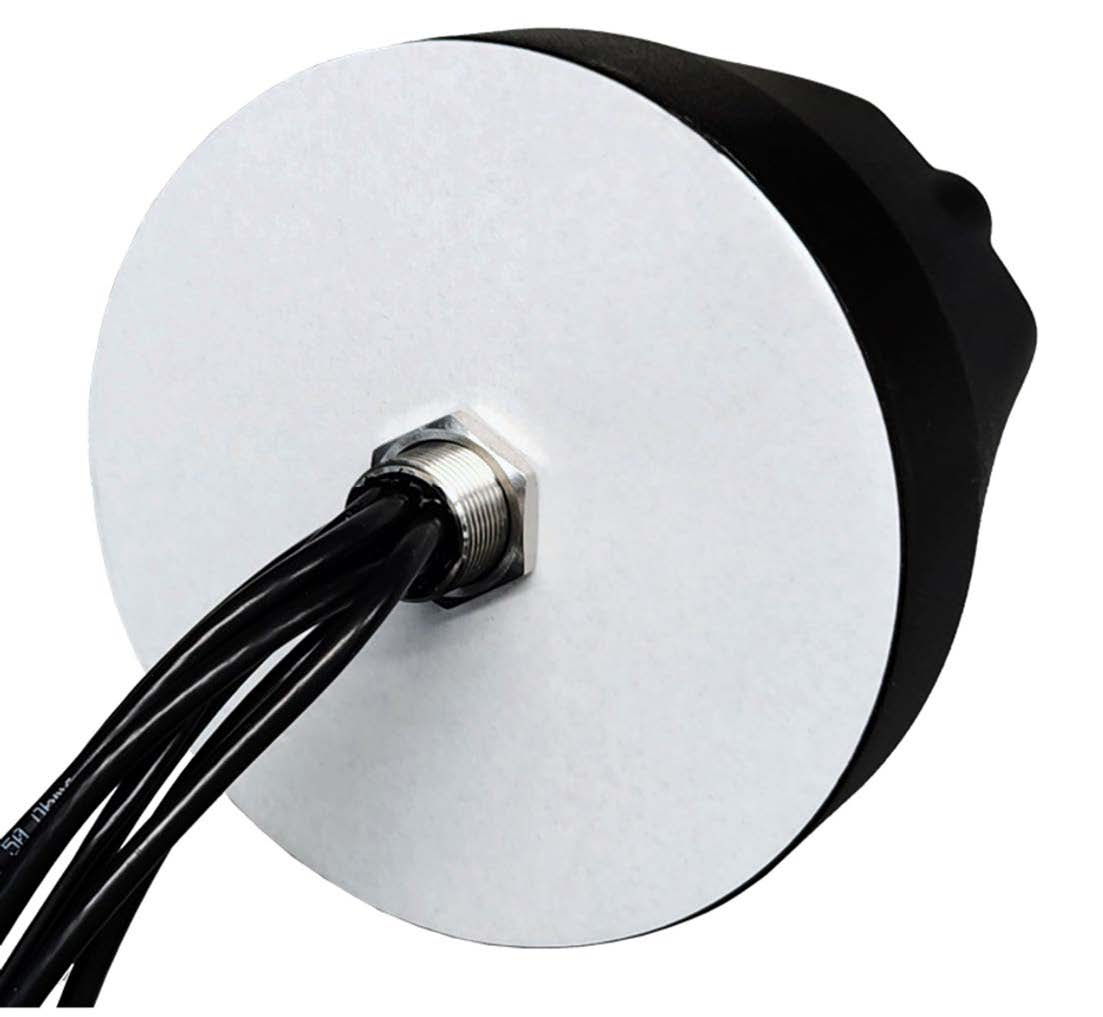

AG Antenna Group AG69F-BB-8CG network antenna MIMO directional antenna1
AG Antenna Group AG69F-BB-8CG network antenna MIMO directional antenna1 AG Antenna Group AG69F-BB-8CG network antenna MIMO directional antenna2 AG Antenna Group AG69F-BB-8CG network antenna MIMO directional antenna3 AG Antenna Group AG69F-BB-8CG network antenna MIMO directional antenna4

AG Antenna Group AG69F-BB-8CG network antenna MIMO directional antenna

AG Antenna Group AG69F-BB-8CG. Impedance: 50 Ω, LNA gain: 29 dB, GPS frequency: 1562 - 1612 MHz. Antenna type: MIMO directional antenna, Connector gender: Male, Voltage Standing Wave Ratio (VSWR): 2.0:1. Power source type: DC, Power consumption: 15 mA, Input voltage: 3 - 5 V. Certification: TAA. Height: 4.49" (114 mm), Diameter: 5.51" (14 cm)
Manufacturers: AG Antenna Group , AG ANTENNA GROUP, LLC
SKU: 7225325
Manufacturer part number: AG69F-BB-8CG
Vendor: Synnex
MSRP: $634.00
$372.28
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Our AG60 Enterprise Series Multi-MIMO Mobility Antennas - Proprietary Multi-Carrier / Multi-Technology Evolution Optimization Assures Maximum, Future-Proof Enterprise Connectivity

Our AG60 Enterprise Series Multi-MIMO Mobility Antennas - Our Ruggedized, Weatherproof MIMO M2M IoT External Antenna Solutions are Currently Providing 400,000+ Ericsson Cradlepoint, Semtech Sierra Wireless, Peplink, Cisco, DiGi,Cudy, GL-iNet, InHand, Inseego, BEC, MoFi Routers and Gateways with Enhanced Connectivity Nationwide.

Our AG60 Enterprise Series Multi-MIMO Mobility Antennas - Approved / Purchased by FBI, US Army, US Navy, US Air Force, US Marine Corps, DEA, Department of Homeland Security, Bureau of Alcohol Tobacco Firearms & Explosives, IRS and Other Federal, State & Local Public Safety Agencies Nationwide.
Nationwide Service - Nationwide Warranty - Satisfaction Guaranteed!!



  • Heavy Duty, Ruggedized, High Impact, Weatherproof ABS Dome Housing
  • Engineered For Demanding Enterprise Level Public Safety Applications
  • For Use in ALL Climates & Conditions
  • Approved / Purchased by Federal, State & Local Agencies Nationwide
  • For Use in Mobility and Stationary Applications
  • Available Colors: Black or White
  • TAA Compliant
  • Multi-Carrier / Multi-Technology Compliant
Our AG60 Enterprise Series Multi-MIMO Mobility Antennas - Proprietary Multi-Carrier / Multi-Technology Evolution Optimization Assures Maximum, Future-Proof Enterprise Connectivity

Our AG60 Enterprise Series Multi-MIMO Mobility Antennas - Our Ruggedized, Weatherproof MIMO M2M IoT External Antenna Solutions are Currently Providing 400,000+ Ericsson Cradlepoint, Semtech Sierra Wireless, Peplink, Cisco, DiGi,Cudy, GL-iNet, InHand, Inseego, BEC, MoFi Routers and Gateways with Enhanced Connectivity Nationwide.

Our AG60 Enterprise Series Multi-MIMO Mobility Antennas - Approved / Purchased by FBI, US Army, US Navy, US Air Force, US Marine Corps, DEA, Department of Homeland Security, Bureau of Alcohol Tobacco Firearms & Explosives, IRS and Other Federal, State & Local Public Safety Agencies Nationwide.
Nationwide Service - Nationwide Warranty - Satisfaction Guaranteed!!



  • Heavy Duty, Ruggedized, High Impact, Weatherproof ABS Dome Housing
  • Engineered For Demanding Enterprise Level Public Safety Applications
  • For Use in ALL Climates & Conditions
  • Approved / Purchased by Federal, State & Local Agencies Nationwide
  • For Use in Mobility and Stationary Applications
  • Available Colors: Black or White
  • TAA Compliant
  • Multi-Carrier / Multi-Technology Compliant
Products specifications
Attribute nameAttribute value
Height4.49"
MountingUniversal
Diameter5.51"
Housing MaterialAcrylonitrile butadiene styrene (ABS)
Cable TypeAGA200 / AGA100
Antenna TypeMIMO directional antenna
Cable Length179.9"
Power Consumption15 mA
Operating frequency617 - 7000 MHz
4G standardLTE
Ultraviolet (UV) resistantYes
Voltage Standing Wave Ratio (VSWR)2.0:1
Noise figure-2 dB
5G standardNR
Cellular network isolation10 dB
Power efficiency range (cellular network)70 - 85 %
Cellular network correlation coefficient0.2
LNA gain29 dB
GPS frequency1562 - 1612 MHz
Navigation systems supportedCompass, GPS, Galileo, Glonass, Quasi-Zenith Satellite System (QZSS)
Technical details
Product colorBlack
Design
CertificationTAA
Operational conditions
Operating temperature (T-T)-40 - 80 °C
Power
Input voltage3 - 5 V
Power source typeDC
Features
Protection featuresUV resistant
PurposeOutdoor
International Protection (IP) codeIP69K
Impedance50 Ω
Packaging content
Quantity per pack1 pc(s)
Performance
Connector genderMale
*
*
*
Products specifications
Attribute nameAttribute value
Height4.49"
MountingUniversal
Diameter5.51"
Housing MaterialAcrylonitrile butadiene styrene (ABS)
Cable TypeAGA200 / AGA100
Antenna TypeMIMO directional antenna
Cable Length179.9"
Power Consumption15 mA
Operating frequency617 - 7000 MHz
4G standardLTE
Ultraviolet (UV) resistantYes
Voltage Standing Wave Ratio (VSWR)2.0:1
Noise figure-2 dB
5G standardNR
Cellular network isolation10 dB
Power efficiency range (cellular network)70 - 85 %
Cellular network correlation coefficient0.2
LNA gain29 dB
GPS frequency1562 - 1612 MHz
Navigation systems supportedCompass, GPS, Galileo, Glonass, Quasi-Zenith Satellite System (QZSS)
Technical details
Product colorBlack
Design
CertificationTAA
Operational conditions
Operating temperature (T-T)-40 - 80 °C
Power
Input voltage3 - 5 V
Power source typeDC
Features
Protection featuresUV resistant
PurposeOutdoor
International Protection (IP) codeIP69K
Impedance50 Ω
Packaging content
Quantity per pack1 pc(s)
Performance
Connector genderMale
